Plastic Enclosure
/
Industrial Control Enclosure
Product code: 22-86
[ Print version ]
[ Return ]
Size: 50x90x69 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...

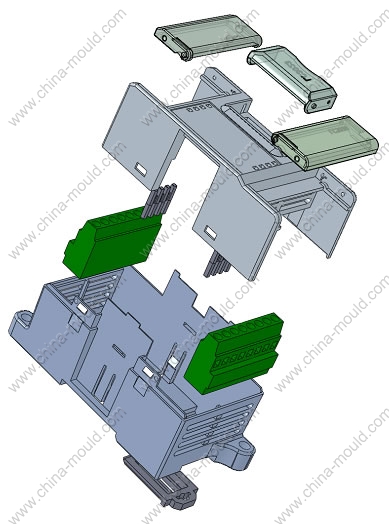

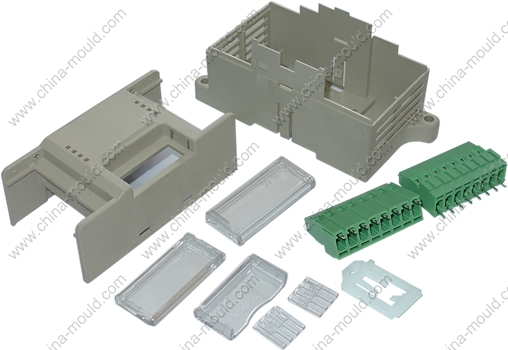

Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
22-86-1
1
ABS
2
22-86-2
1
ABS
3
22-86-3
1
PC
4
22-86-4
1
PC
5
22-86-5
2
PC
6
22-85-3
1
PC
7
22-83-8
1
POM
8
Optional accessories
No.
Part No.
Part Name
Qty
Material
Note
1
SH142H
16
Nylon6
2
