Plastic Enclosure
/
Hand-held Enclosure

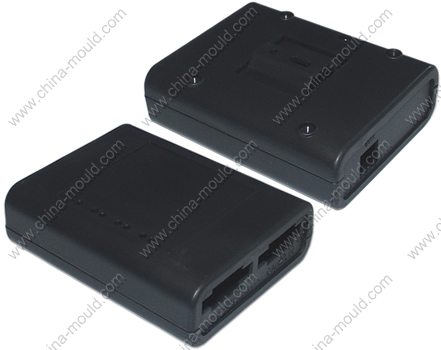

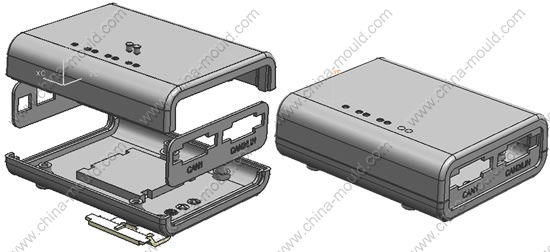

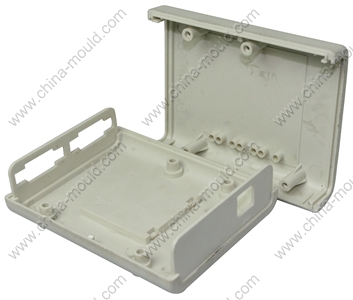

Product code: 21-132
[ Print version ]
[ Return ]
Size: 98x78x31 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...
Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
21-132-1
1
ABS
2
21-132-2
1
ABS
3
21-132-3
1
ABS
4
Optional accessories
No.
Part No.
Part Name
Qty
Material
Note
1
21-132-4
1
ABS
2
21-132-5
1
ABS
3
21-132-6
1
ABS
4
21-132-7
2
ABS
5
