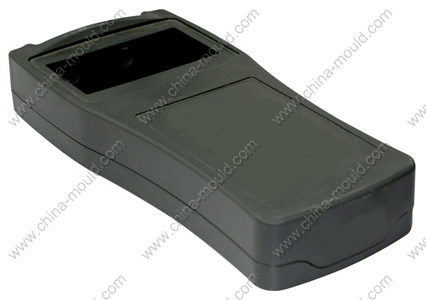

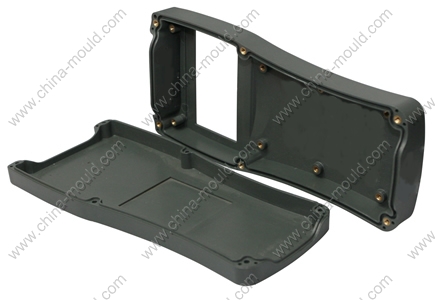

Index /  Products /  Plastic Enclosure /  Hand-held Enclosure Product code: 21-98B [ Print version ] [ Return ]     Size: 201x92x36 mm ProtectionClass: no Battery: no Windows: 3.2",70x40mm PDF Drawings:  Download Note: Material and color can be customized. For modification, there will be surcharge. Drawings from website is just for reference. Certificates for waterproof and ex-proof are not available. Making toolings cooperative, 50% tooling cost will be undertaken. more pictures... Standard accessories No. Part No. Part Name Qty Material Note 1 21-98-1B 1 ABS   2 21-98-2 1 ABS   3 21-98-3 1 PMMA372   4 M3x16 6 Iron   5           Optional accessories No. Part No. Part Name Qty Material Note 1 21-98-4 1 Corrugated   2 21-98-5 1 Silica gel   3             This product has the following changes: Code: 21-98   Code: 21-98A   Code: 21-98C   [ Print version ] [ Return ] Similar products: more... Code: 21-206 Size:   Code: 21-9D Size: 175x62x26 mm   Code: 21-99D Size: 110x51x23 mm   Code: 21-99A Size: 110x51x23 mm   Code: 21-98C Size: 201x90x32 mm   Code: 21-98A Size: 201x92x36 mm   Code: 21-98 Size: 201x92x36 mm   Code: 21-96A Size: 174x74x27 mm   Code: 21-96 Size: 174x74x27 mm   Code: 21-95 Size: 86x35x9 mm   Code: 21-94D Size: 172x120x61 mm   Code: 21-93 Size: 113x222x79 mm     Classification and Search Product Classification New Products The products being developed Search by Code: Advanced Search: -- All Classification --Plastic Enclosure --Water Proof Enclosure --Cable Gland --Relay Enclosure & Socket --Plastic Cabinet --Desk-top Enclosure --Wall-mounting Enclosure --Electric Conjunction Enclosure --Hand-held Enclosure --Industrial Control Enclosure --Standard Din-rail Enclosure --IC Card Reader Enclosure --Module Enclosure --Frequency Transducer Enclosure --Display Enclosure --Non-standard Meter Enclosure --Annunciator Enclosure --Terminal Block --Transparent Cover --Plastic Knob --Plastic Transducer Head --Impeller --Moulde Enclosure --Plastic Equipment Case --Advanced protective cases --Circulation BoxMetal Enclosure --Iron Cabinet --Al.Extrusion Cabinet --Wind Wheel -- 19 inch Cabinet --Standard Al CaseAl.Die-casting Enclosure --Sensor Head --Transducer Enclosure --Al.Water-proof Enclosure --Stainless Steel Connector --Stainless-steel Gland & Connector --Rubber Sealing Rings --Contactor Block --Al Die Casting PartDigital Panel Meter Enclosure --24x48 --48x48 --48x96 --60x120 --72x72 --72x144 --96x96 --80x160 --120x120 --144x144 --160x160 --Non-standard --Available Panel --Conductive rubber keypad --O-ring gasket --Various kinds of silicon rubber parts --Smart Toilet Seat --Smart Toilet Length: to Width: to Height: to Battery: * 1 x R03,AAA 2 x R03,AAA 3 x R03,AAA 4 x R03,AAA 2 x R6,AA 3 x R6,AA 4 x R6,AA 5 x R6,AA 6 x R6,AA 3 x R14,C 2 x R20,D Lithium battery Non-standard batteries 1 x 9V Windows: * 1.0",20x18mm 1.0",21x13.6mm 1.4",29.5x21mm 1.5",32.5x20mm 1.6",31.4x26mm 1.6",33.5x22.5mm 1.6",36x20mm 1.6",40x12mm 1.8",39x22mm 1.8",42.2x16.5mm 1.9",40x27mm 1.9",45.6x17.8mm 10.6",216x160mm 13.3",268.6x204.6mm 2.0",41.8x26.8mm 2.0",42x30.5mm 2.0",43x29mm 2.0",44x26.5mm 2.0",47x18mm 2.0",48x19mm 2.0",49x15mm 2.0",50x12mm 2.1",41x34mm 2.1",46.3x25.2mm 2.1",48x28mm 2.2",45.9x31.4mm 2.2",48.4x30.5mm 2.2",52x23mm 2.2",53.5x17.5mm 2.2",54x20mm 2.3",47.5x33mm 2.3",51x29mm 2.3",54x23.5mm 2.4",57x24mm 2.4",58.3x20mm 2.5",50x38mm 2.5",55.5x31.5mm 2.5",59x25.5mm 2.6",53.3x37.5mm 2.6",53x40mm 2.6",56x36mm 2.6",60x29mm 2.6",64.5x16.5mm 2.6",65x15mm 2.7",53.7x43.3mm 2.7",54.5x42mm 2.8",55x45mm 2.8",60x37mm 2.8",68x24mm 2.9",56x48.5mm 2.9",62x42mm 2.9",65x33mm 3.1",64x48mm 3.1",65x45mm 3.1",66.5x43mm 3.1",67.5x40mm 3.1",70x37mm 3.1",74.6x24.2mm 3.2",65x50mm 3.2",67x47mm 3.2",70x40mm 3.2",72x37.5mm 3.2",75x32.4mm 3.3",63.5x54mm 3.3",68.4x50.4mm 3.3",72x43mm 3.3",73.5x40.5mm 3.3",75.6x35mm 3.4",61.5x61.5mm 3.4",69x52mm 3.5",64x64mm 3.5",71.6x54mm 3.5",72x52mm 3.5",77x42mm 3.7",79x50mm 3.7",85x42mm 3.8",88x44mm 3.9",79x60mm 3.9",80x58mm 4.0",80.5x61.5mm 4.0",80x64mm 4.0",82.8x63mm 4.0",94x42mm 4.0",98x30mm 4.1",101x26mm 4.1",93x48mm 4.2",100x37mm 4.2",91x55mm 4.3",97x48mm 4.5",102x55mm 4.8",98x74mm 4.9",114x52mm 5.0",112x62mm 5.1",104.6x79.3mm 5.1",123.5x43mm 5.8",114x95mm 5.8",118x88mm 5.9",119x92mm 6.0",122x92mm 6.2",134x81mm 6.9",143x101 6.9",151x90mm 7.0",154x93mm 7.1",158x90.5mm 7.7",168x103mm 8.1",164.5x124mm 8.6",173.5x132mm 9.8",195.8x154mm 9.8",203x147mm Search Note : Please enter the size range, such as between 20~30mm in length, can only import figures.   Subordinate company Cixi sanhe appliance & plastics co.,ltd Professional connectors manufacturer Euro-US quality Chinese Price Cixi Changhe Sanhe Metal Enclosure Manufactory Professional transmiter and casting enclosure manufactory
