Plastic Enclosure
/

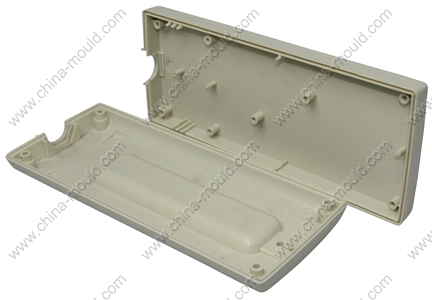

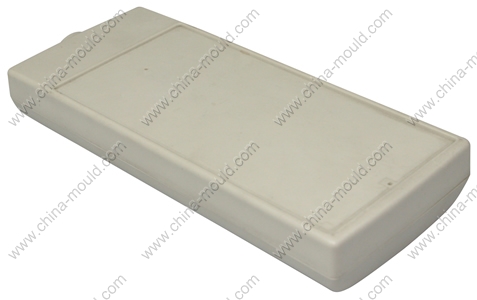

Hand-held Enclosure
Product code: 21-96A
[ Print version ]
[ Return ]
Size: 174x74x27 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...
Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
21-96-1A
1
ABS
2
21-96-2
1
ABS
3
21-96-3
1
Iron
4
This product has the following changes:
Code:
21-96
[ Print version ]
[ Return ]
