Plastic Enclosure
/
Hand-held Enclosure

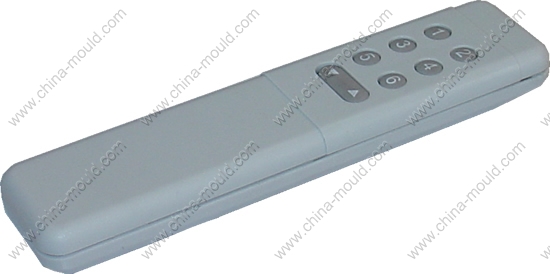

Product code: 21-63D
[ Print version ]
[ Return ]
Size: 156x37x17 mm
ProtectionClass: no
Battery: 2 x R03,AAA
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.

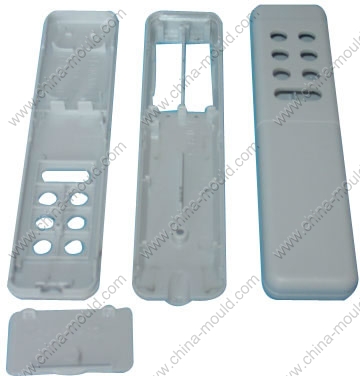

more pictures...
Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
21-63-1
1
ABS
2
21-63-2
1
ABS
3
21-63-3
1
ABS
4
21-63-4
1
PC
5
21-63-5
1
Rubber
6
[ Print version ]
[ Return ]
