Plastic Enclosure
/
Hand-held Enclosure

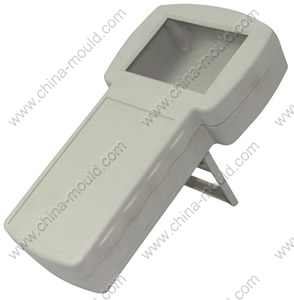

Product code: 21-53
[ Print version ]
[ Return ]
Old code: 99TC
Size: 209x110x40 mm
ProtectionClass: no
Battery: no
Windows: 3.5",72x52mm
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...
Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
21-53-1
1
ABS
2
21-53-2
1
ABS
3
21-53-3
1
PC
4
21-20-5
1
ABS
5
21-20-6
1
ABS
6
MFT2
1
Foam
7
PT3x8
1
Iron
8
M3x30
4
Iron
9
This product has the following changes:
Code:
21-53D
[ Print version ]
[ Return ]
