Plastic Enclosure
/

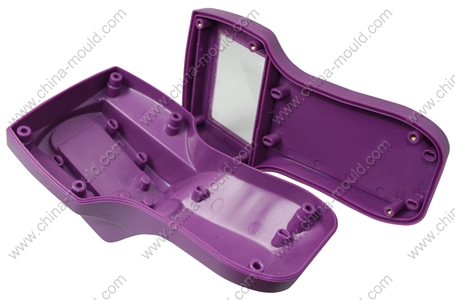

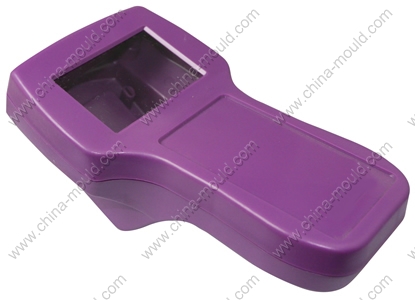

Hand-held Enclosure
Product code: 21-24
[ Print version ]
[ Return ]
Old code: 89
Size: 197x108x69 mm
ProtectionClass: no
Battery: no
Windows: 3.1",66.5x43mm
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...

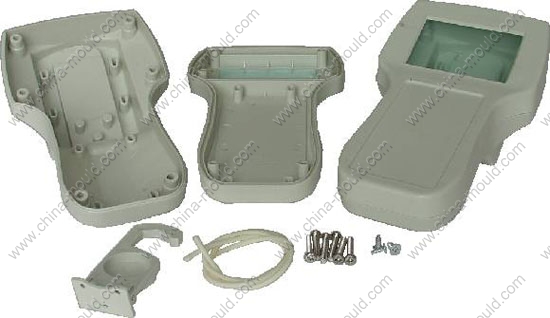

Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
21-24-1
1
ABS
2
21-24-2
1
ABS
3
21-24-3
1
ABS
4
21-24-4
1
ABS
5
21-24-5
1
Iron
6
21-24-6
1
PC
7
MFT2.5
1
Foam
8
ST3x9C
3
Iron
9
M4x16
6
Iron
10
