Plastic Enclosure
/

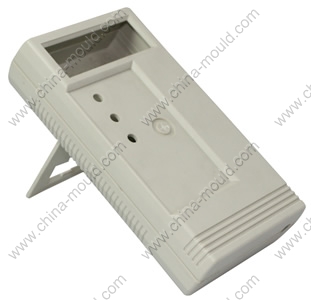

Hand-held Enclosure
Product code: 21-7
[ Print version ]
[ Return ]
Old code: 28
Size: 140x76x32 mm
ProtectionClass: no
Battery: 4 x R6,AA
Windows: 2.4",58.3x20mm
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.

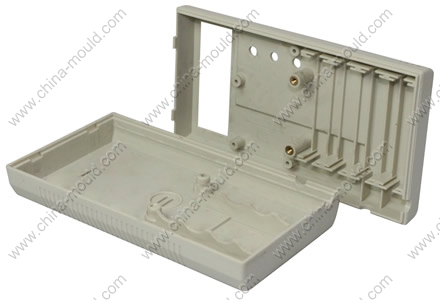

more pictures...
Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
21-7-1
1
ABS
2
21-7-2
1
ABS
3
21-1-4
1
ABS
4
M2.5x12
2
Iron
5
Optional accessories
No.
Part No.
Part Name
Qty
Material
Note
1
DCTP5Z
4
Brass
2
DCTP5F
4
Brass
3
