Plastic Enclosure
/
Electric Conjunction Enclosure

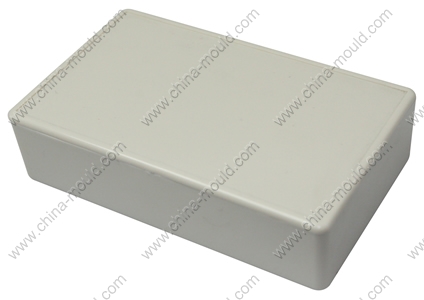

Product code: 20-11
[ Print version ]
[ Return ]
Old code: 206
Size: 100x60x25 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.

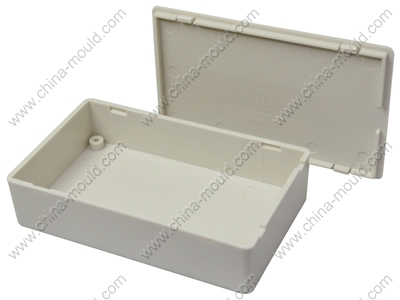

more pictures...
Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
20-11-1
1
ABS
2
20-11-2
1
ABS
3
[ Print version ]
[ Return ]
