Plastic Enclosure
/
Electric Conjunction Enclosure
Product code: 20-138
[ Print version ]
[ Return ]
Size: 178x121x60 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...

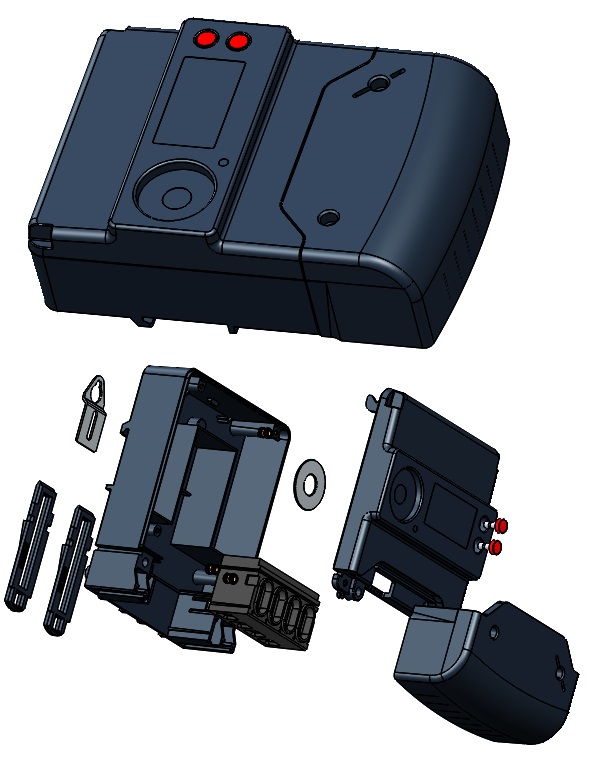

Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
20-138-1
1
PC
2
20-138-2
1
PC
3
20-138-3
1
PC-V0
4
20-138-4
1
PC
5
20-138-5
2
PC
6
20-138-6
2
PC
7
20-138-7
1
Iron
8
20-138-8
1
Iron
9
