Plastic Enclosure
/

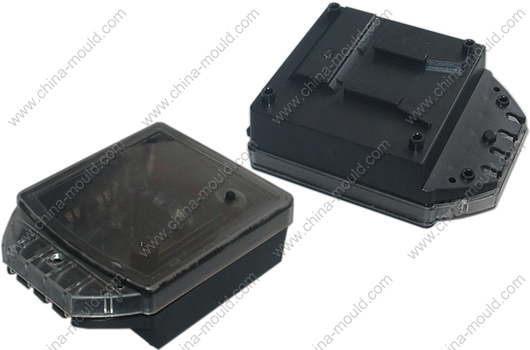

Electric Conjunction Enclosure
Product code: 20-89
[ Print version ]
[ Return ]
Size: 112x88x42 mm
ProtectionClass: no
Battery: 2 x R6,AA
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.

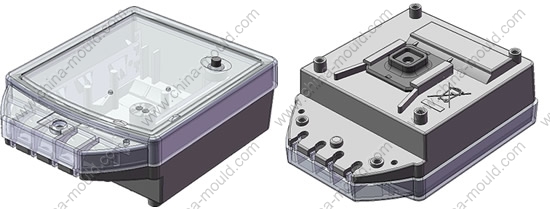

more pictures...

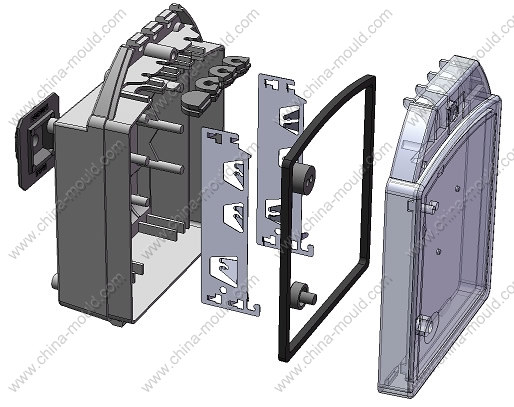

Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
20-89-1
1
PC
2
20-89-2
1
PC+GF
3
20-89-3
1
PBT+GF
4
20-89-4
1
Rubber
5
20-89-5
1
Rubber
6
20-89-6
1
Rubber
7
20-89-7
3
Rubber
8
20-89-8
1
Silica gel
9
20-89-9
1
304 Stainless steel
10
20-89-10
1
304 Stainless steel
11
Optional accessories
No.
Part No.
Part Name
Qty
Material
Note
1
20-89-11
2
Rubber
2
20-89-12
2
Phosphor bronze
3
20-89-13
2
Brass
4
20-89-14
1
Phosphor bronze
5
20-89-15
1
Phosphor bronze
6
20-89-16
2
Phosphor bronze
7
