Plastic Enclosure
/
Wall-mounting Enclosure

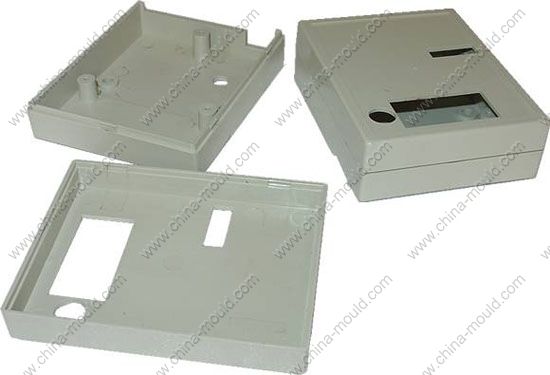

Product code: 19-7
[ Print version ]
[ Return ]
Old code: 29
Size: 80x100x32 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...
Assembly Parts List
Serial No.
Part No.
Part Name
Qty
Material
Surface Finish
Remarks
1
29-1
Top Cover
1
ABS
Texture Finish
2
29-2
Base Part
1
ABS
Texture Finish
3
Optional Parts
Serial No.
Part No.
Part Name
Qty
Material
Surface Finish
Remarks
1
2
