Product code: 19-4
[ Print version ] [ Return ]


  • Old code: 252B-2
    		•
  • Size: 258x102x120 mm
  • ProtectionClass: no
  • Battery: no
  • Windows: no

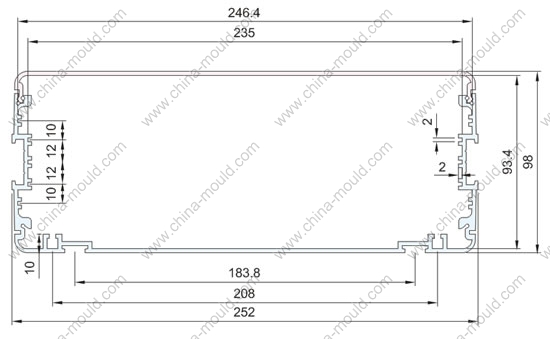

  • PDF Drawings:  Download
    		•
    Note:
  		• Material and color can be customized.
  		• For modification, there will be surcharge.
  		• Drawings from website is just for reference.
  		• Certificates for waterproof and ex-proof are not available.
  		• Making toolings cooperative, 50% tooling cost will be undertaken.
    more pictures...

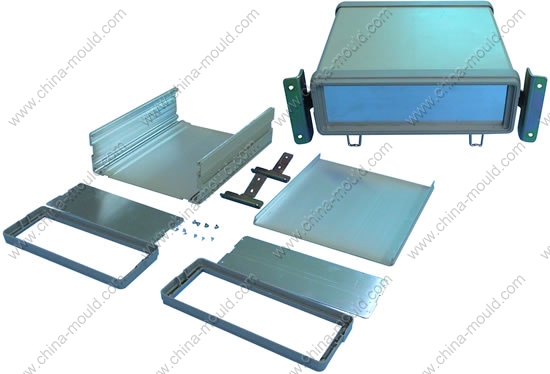

    Assembly Parts List
    Serial No.
    Part No.
    Part Name
    Qty
    Material
    Surface Finish
    Remarks
    1 252A-01 Top Cover 1 Aluminum Powder Coating
    2 252B-02 Base Part 1 Aluminum Powder Coating
    3 D4 Front & Rear Plastic Bezel  2  ABS Texture Finish
    4  205A-04 Bracket  2  Iron Zinc Plated
    5    M3x6 Tap Screw  8 Steel
    6   M5x6 Sunk Head Screw   2 Steel
    7  252B-03 Front & Rear Al Panel   2  Aluminum
    Optional Parts
    Serial No.
    Part No.
    Part Name
    Qty
    		 Material
    Surface Finish
    Remarks
    1
    2

    This product has the following changes:
    Code: 17-4

    Code: 17-4B

    Code: 17-54
