Products
/
Plastic Enclosure
/
Wall-mounting Enclosure

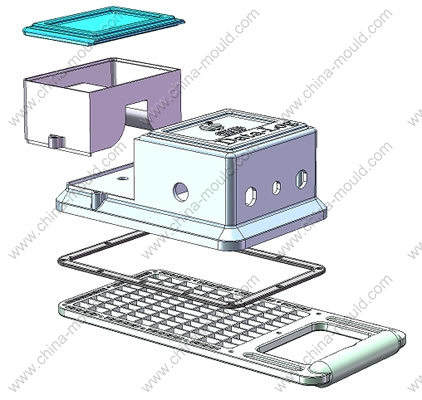

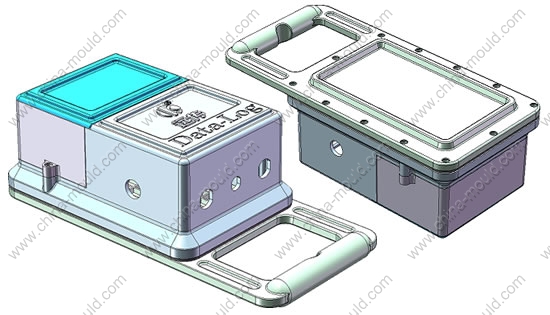

Product code: 19-60
[ Print version ]
[ Return ]
Size: 251x120x86 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...
Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
19-60-1
1
Nylon+GF
2
19-60-2
1
Nylon+GF
3
19-60-3
1
Nylon+GF
4
19-60-4
1
Nylon+GF
5
[ Print version ]
[ Return ]
