Plastic Enclosure
/
Desk-top Enclosure

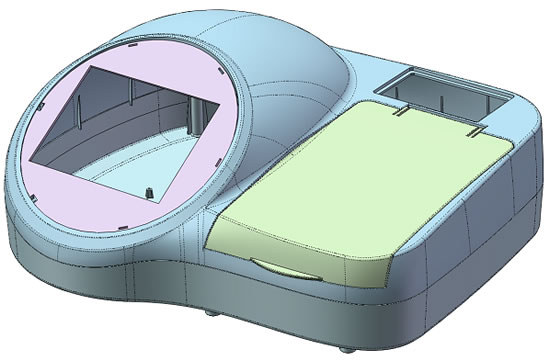

Product code: 18-63
[ Print version ]
[ Return ]
Size: 431x374x171 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...

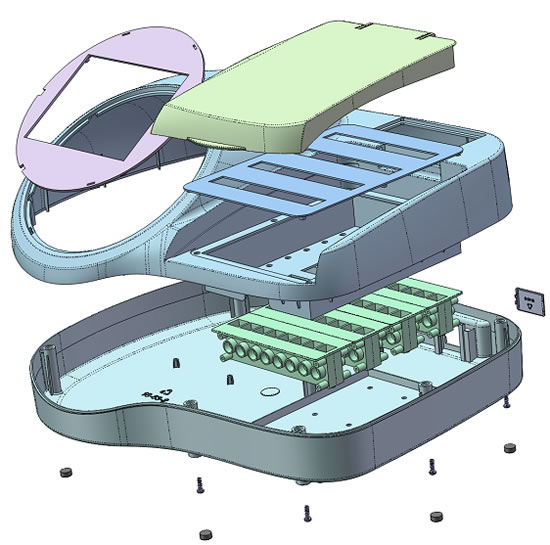

Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
18-63-1
1
ABS
2
18-63-2
1
ABS
3
18-63-3
1
ABS
4
18-63-4
1
ABS
5
18-63-5
1
ABS
6
18-63-6
4
ABS
7
15-36-3
7
Rubber
8
ST3x6
44
Iron
9
M3x6
6
Iron
10
PT4x9
7
Iron
11
Optional accessories
No.
Part No.
Part Name
Qty
Material
Note
1
18-63-7A
1
Iron
2
18-63-7B
1
Iron
3
18-63-7C
1
Iron
4
18-63-7D
1
Iron
5
18-63-7E
1
Iron
6
18-63-7F
1
Iron
7
