Plastic Enclosure
/
Relay Enclosure & Socket

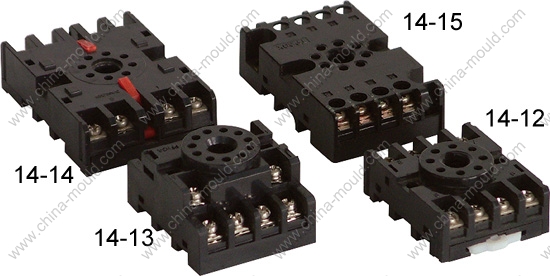

Product code: 14-12
[ Print version ]
[ Return ]
Old code: 4809
Size: 51x41x21 mm
ProtectionClass: no
Battery: no
Windows: no
PDF Drawings:
Download
Note:
Material and color can be customized.
For modification, there will be surcharge.
Drawings from website is just for reference.
Certificates for waterproof and ex-proof are not available.
Making toolings cooperative, 50% tooling cost will be undertaken.
more pictures...

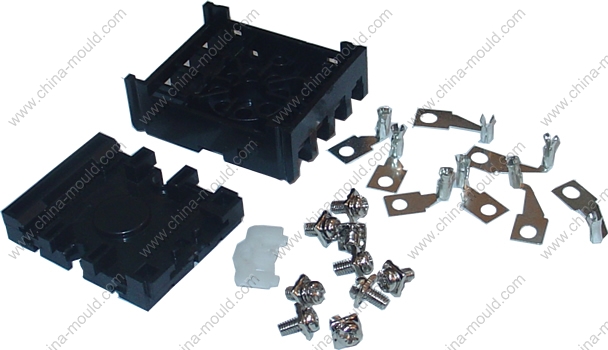

Standard accessories
No.
Part No.
Part Name
Qty
Material
Note
1
14-12-1
1
ABS
2
14-12-2
1
ABS
3
14-12-3
1
POM
4
14-12-4
2
beryllium bronze
5
14-12-5
2
beryllium bronze
6
14-12-6
2
beryllium bronze
7
14-12-7
2
beryllium bronze
9
M3x3LM
8
Iron
10
