Product code: 11-193
[ Print version ] [ Return ]


  • Size: 198x191x120 mm
  • ProtectionClass: IP65
  • Battery: no
  • Windows: no
  • PDF Drawings:  Download
  • Note:
  • Material and color can be customized.
  • For modification, there will be surcharge.
  • Drawings from website is just for reference.
  • Certificates for waterproof and ex-proof are not available.
  • Making toolings cooperative, 50% tooling cost will be undertaken.
    more pictures...

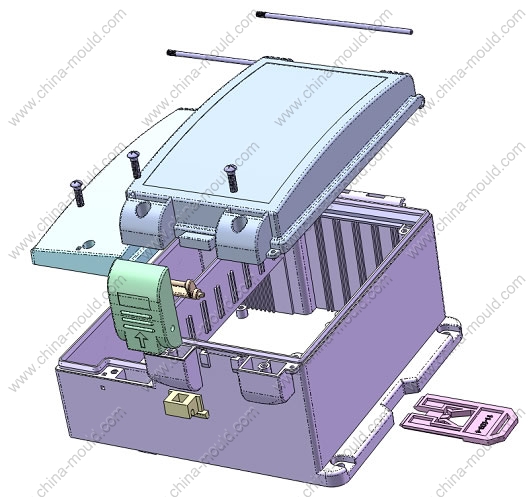

    Standard accessories
    No. Part No. Part Name Qty Material Note
    1 11-193-1 1 PC+GF
    2 11-193-2 1 PC+GF
    3 11-193-3 1 PC+GF
    4 11-193-4 1 PC+GF
    5 11-193-5 1 Nylon6
    6 11-193-6 1 ABS
    7 11-100-4 1 POM
    8 11-100-7 1 PC
    9 11-100-8 1 Stainless Steel
    10 11-100-9 1 Stainless Steel
    11 PT4x16 3 Iron
    12 MFT3 2 Foam
    13
